LS2SUS37

LS2SUS3

Spec #:M24643/31-08UD

MFR #:M24643/31-08UD

GCG #:LS2SUS37

Spec #:M24643/31-08UD

MFR #:M24643/31-08UD

GCG #:LS2SUS37

Min Qty:1

  |

Qty Increment:1

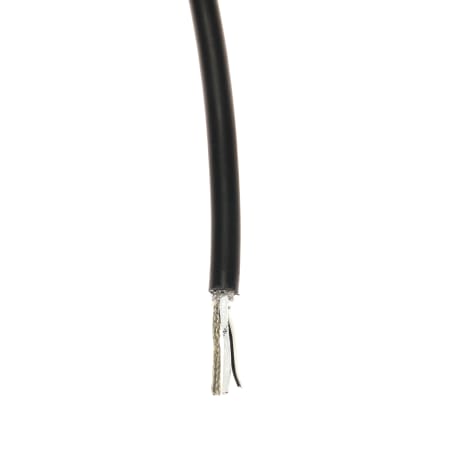

Seacoast USA's M24643/31-08UD (LS2SUS37) is a 600V watertight cable with non-flexing service. M24643/31-08UD has 74 22 AWG conductors with a minimum diameter of 1.35 and a maximum diameter of 1.44 inches. LS2SUS37 has a bend radius of 17.5 inches, and is Individually & Double Overall Shielded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, thermoset insulation. One black and one white conductor twisted to form pair. Optional binder, braided tin-coated copper shielded, shielded insulation of two sealed Polyester tapes or one tape with extruded jacket. Standard Identification Code by Method 2. The required number of shielded pairs cabled consecutively, optional fillers and binder. Cross-linked Polyolefin jacket. Double overall shielded.
Requires Quote

Min Qty:1

  |

Qty Increment:1

Seacoast USA's M24643/31-08UD (LS2SUS37) is a 600V watertight cable with non-flexing service. M24643/31-08UD has 74 22 AWG conductors with a minimum diameter of 1.35 and a maximum diameter of 1.44 inches. LS2SUS37 has a bend radius of 17.5 inches, and is Individually & Double Overall Shielded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, thermoset insulation. One black and one white conductor twisted to form pair. Optional binder, braided tin-coated copper shielded, shielded insulation of two sealed Polyester tapes or one tape with extruded jacket. Standard Identification Code by Method 2. The required number of shielded pairs cabled consecutively, optional fillers and binder. Cross-linked Polyolefin jacket. Double overall shielded.

Attributes

Environmental Properties
Temperature Rating (Range)-20°C to +90°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor Count74
Gauge Size22AWG
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)1.44
Solid/StrandedStranded
Shielded/UnshieldedIndividually & Double Overall Shielded
Shield TypeTin-Coated Copper Braid
Cable Diameter Min (in)1.35
Electrical Properties
Insulation MaterialThermoset
Voltage Rating600V
Physical Properties
Bend Radius (in)17.5
Weight per Foot1.823
