TXOW4
Spec #:M24640/20-02UO
MFR #:M24640/20-02UO
GCG #:TXOW4
Spec #:M24640/20-02UO
MFR #:M24640/20-02UO
GCG #:TXOW4
Min Qty:1
|Qty Increment:1

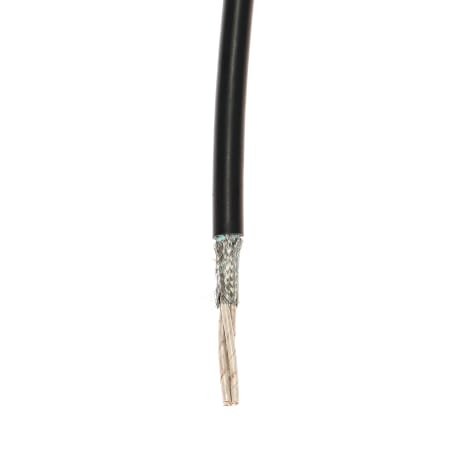

Seacoast USA's M24640/20-02UO (TXOW4) is a 600V light weight, watertight cable with non-flexing service with circuit integrity. M24640/20-02UO has 3 14 AWG conductors with a minimum diameter of 0.343 and a maximum diameter of 0.369 inches. TXOW4 has a bend radius of 4.5 inches, and is Overall Shielded with Mica-Glass/Polyimide Tape insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Three conductor, 7 strand coated or uncoated copper conductor, composite tape wrapped insulation consisting of mica-glass, Polyimide tape, and Polyimide-FEP tape with Polyimide coating. Three conductors cabled, optional binder tape, cross-linked Polyolefin jacket, surface marking. Overall optimized tinned copper braid shielded and optional binder tape. Standard Identification Code by Method 1 or 3.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24640/20-02UO (TXOW4) is a 600V light weight, watertight cable with non-flexing service with circuit integrity. M24640/20-02UO has 3 14 AWG conductors with a minimum diameter of 0.343 and a maximum diameter of 0.369 inches. TXOW4 has a bend radius of 4.5 inches, and is Overall Shielded with Mica-Glass/Polyimide Tape insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Three conductor, 7 strand coated or uncoated copper conductor, composite tape wrapped insulation consisting of mica-glass, Polyimide tape, and Polyimide-FEP tape with Polyimide coating. Three conductors cabled, optional binder tape, cross-linked Polyolefin jacket, surface marking. Overall optimized tinned copper braid shielded and optional binder tape. Standard Identification Code by Method 1 or 3.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialUncoated Copper
Conductor Count3
Gauge Size14AWG
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)0.369
Solid/StrandedStranded
Stranding7
Shielded/UnshieldedOverall Shielded
Shield TypeTin-Coated Copper Braid
Cable Diameter Min (in)0.343
Electrical Properties
Insulation MaterialMica-Glass/Polyimide Tape
Voltage Rating600V
Physical Properties
Bend Radius (in)4.5
Weight per Foot0.148
