TTXOW15

TTXOW3

Spec #:M24640/24-04UO

MFR #:M24640/24-04UO

GCG #:TTXOW15

Spec #:M24640/24-04UO

MFR #:M24640/24-04UO

GCG #:TTXOW15

Min Qty:1

  |

Qty Increment:1

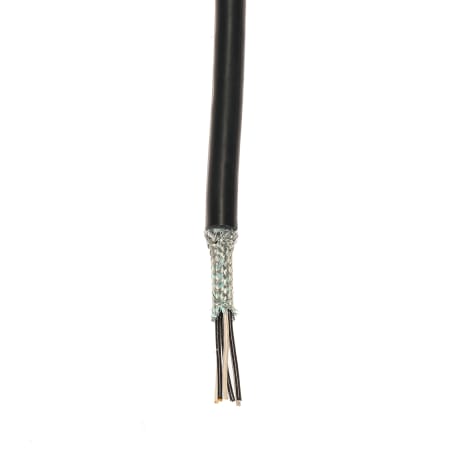

Seacoast USA's M24640/24-04UO (TTXOW15) is a 600V light weight, watertight cable with non-flexing service with circuit integrity. M24640/24-04UO has 30 22 AWG conductors with a minimum diameter of 0.556 and a maximum diameter of 0.6 inches. TTXOW15 has a bend radius of 7.5 inches, and is Overall Shielded with Mica-Glass/Polyimide Tape insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Multipair, 7 strand coated or uncoated copper conductor, composite tape wrapped insulation consisting of mica-glass, Polymide tape and Polymide-FEP tape with Polyimide coating. Two conductors twisted to form a pair. The required number of pairs cabled consecutively, optional binder tape, cross-linked Polyolefin jacket, surface marking. Telephone Identification Code by Method 3 or 6. Pair Identification Code by Method 6 (black/white).
Requires Quote

Min Qty:1

  |

Qty Increment:1

Seacoast USA's M24640/24-04UO (TTXOW15) is a 600V light weight, watertight cable with non-flexing service with circuit integrity. M24640/24-04UO has 30 22 AWG conductors with a minimum diameter of 0.556 and a maximum diameter of 0.6 inches. TTXOW15 has a bend radius of 7.5 inches, and is Overall Shielded with Mica-Glass/Polyimide Tape insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Multipair, 7 strand coated or uncoated copper conductor, composite tape wrapped insulation consisting of mica-glass, Polymide tape and Polymide-FEP tape with Polyimide coating. Two conductors twisted to form a pair. The required number of pairs cabled consecutively, optional binder tape, cross-linked Polyolefin jacket, surface marking. Telephone Identification Code by Method 3 or 6. Pair Identification Code by Method 6 (black/white).

Attributes

Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialUncoated Copper
Conductor Count30
Gauge Size22AWG
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)0.6
Solid/StrandedStranded
Stranding7
Shielded/UnshieldedOverall Shielded
Shield TypeTin-Coated Copper Braid
Cable Diameter Min (in)0.556
Electrical Properties
Insulation MaterialMica-Glass/Polyimide Tape
Voltage Rating600V
Physical Properties
Bend Radius (in)7.5
Weight per Foot0.299
