LSTNW200

LSTNW14

Spec #:M24643/49-10UN

MFR #:M24643/49-10UN

GCG #:LSTNW200

Spec #:M24643/49-10UN

MFR #:M24643/49-10UN

GCG #:LSTNW200

Min Qty:1

  |

Qty Increment:1

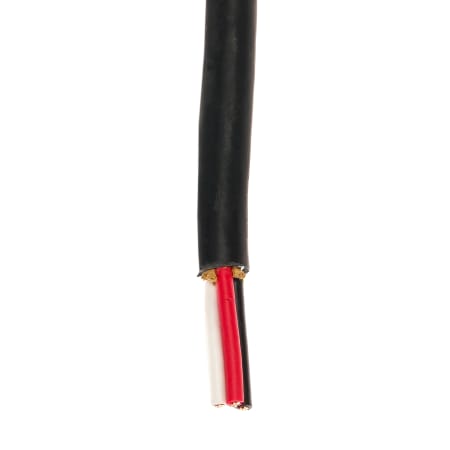

Seacoast USA's M24643/49-10UN (LSTNW200) is a 1000V non-watertight cable with non-flexing service. M24643/49-10UN has 3 0000 AWG conductors with a minimum diameter of 1.555 and a maximum diameter of 1.669 inches. LSTNW200 is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, optional white separator, thermoset insulation. Standard Identification Code by Method 1 or 3. Three conductors cabled with optional fillers and binder. Cross-linked Polyolefin jacket.
Requires Quote

Min Qty:1

  |

Qty Increment:1

Seacoast USA's M24643/49-10UN (LSTNW200) is a 1000V non-watertight cable with non-flexing service. M24643/49-10UN has 3 0000 AWG conductors with a minimum diameter of 1.555 and a maximum diameter of 1.669 inches. LSTNW200 is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, optional white separator, thermoset insulation. Standard Identification Code by Method 1 or 3. Three conductors cabled with optional fillers and binder. Cross-linked Polyolefin jacket.

Attributes

Environmental Properties
Temperature Rating (Range)-20°C to +90°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor Count3
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)1.669
Solid/StrandedStranded
Shielded/UnshieldedUnsheilded
Cable Diameter Min (in)1.555
Electrical Properties
Insulation MaterialThermoset
Voltage Rating1000V
