LSMSCU10

LSMSCU10

Spec #:M24643/18-02UN

MFR #:M24643/18-02UN

GCG #:LSMSCU10

Spec #:M24643/18-02UN

MFR #:M24643/18-02UN

GCG #:LSMSCU10

Min Qty:1

  |

Qty Increment:1

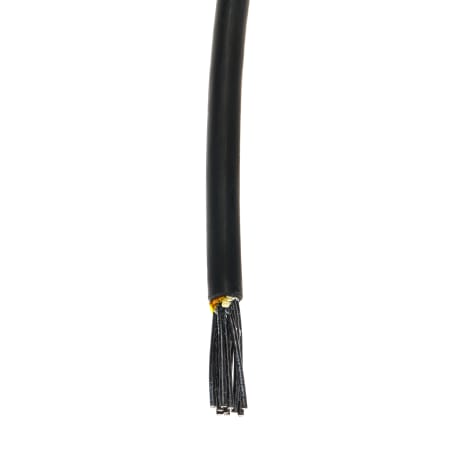

Seacoast USA's M24643/18-02UN (LSMSCU10) is a 1000V watertight cable with non-flexing service. M24643/18-02UN has 10 18 AWG conductors with a minimum diameter of 0.575 and a maximum diameter of 0.622 inches. LSMSCU10 has a bend radius of 4 inches, and is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Stranded coated or uncoated copper conductor, thermoset insulation, optional glass braid, optional covering. Standard Identification Code by Method 1. The required number of conductors cabled with filler as necessary to form a firm well rounded assembly, optional binder. Cross-linked Polyolefin jacket.
Requires Quote

Min Qty:1

  |

Qty Increment:1

Seacoast USA's M24643/18-02UN (LSMSCU10) is a 1000V watertight cable with non-flexing service. M24643/18-02UN has 10 18 AWG conductors with a minimum diameter of 0.575 and a maximum diameter of 0.622 inches. LSMSCU10 has a bend radius of 4 inches, and is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Stranded coated or uncoated copper conductor, thermoset insulation, optional glass braid, optional covering. Standard Identification Code by Method 1. The required number of conductors cabled with filler as necessary to form a firm well rounded assembly, optional binder. Cross-linked Polyolefin jacket.

Attributes

Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialUncoated Copper
Conductor Count10
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)0.622
Shielded/UnshieldedUnsheilded
Cable Diameter Min (in)0.575
Electrical Properties
Insulation MaterialThermoset
Voltage Rating1000V
Physical Properties
Bend Radius (in)4
Weight per Foot0.227
