LSMNW37
Spec #:M24643/51-07UN
MFR #:M24643/51-07UN
GCG #:LSMNW37
Spec #:M24643/51-07UN
MFR #:M24643/51-07UN
GCG #:LSMNW37
Min Qty:1
|Qty Increment:1

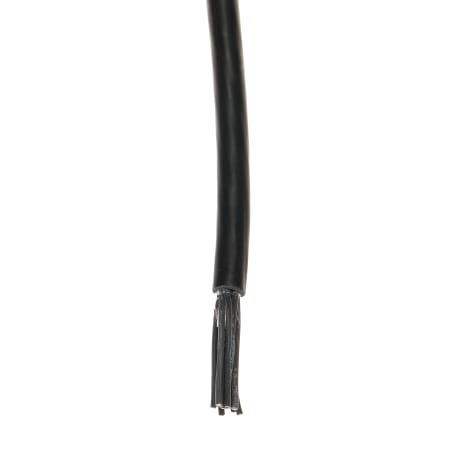

Seacoast USA's M24643/51-07UN (LSMNW37) is a 1000V non-watertight cable with non-flexing service. M24643/51-07UN has 37 18 AWG conductors with a minimum diameter of 0.726 and a maximum diameter of 0.785 inches. LSMNW37 has a bend radius of 3 inches, and is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, thermoset insulation. Standard Identification Code by Method 1 or 3. The required number of conductors cabled consecutively, optional fillers and binder. Cross-linked Polyolefin jacket.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24643/51-07UN (LSMNW37) is a 1000V non-watertight cable with non-flexing service. M24643/51-07UN has 37 18 AWG conductors with a minimum diameter of 0.726 and a maximum diameter of 0.785 inches. LSMNW37 has a bend radius of 3 inches, and is Unsheilded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, thermoset insulation. Standard Identification Code by Method 1 or 3. The required number of conductors cabled consecutively, optional fillers and binder. Cross-linked Polyolefin jacket.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +90°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor Count37
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)0.785
Solid/StrandedStranded
Shielded/UnshieldedUnsheilded
Cable Diameter Min (in)0.726
Electrical Properties
Insulation MaterialThermoset
Voltage Rating1000V
Physical Properties
Bend Radius (in)3
Weight per Foot0.361
