LSC6OSW4

LSC6OSW4

Spec #:M24643/77-03UO

MFR #:M24643/77-03UO

GCG #:LSC6OSW4

Spec #:M24643/77-03UO

MFR #:M24643/77-03UO

GCG #:LSC6OSW4

Min Qty:1

  |

Qty Increment:1

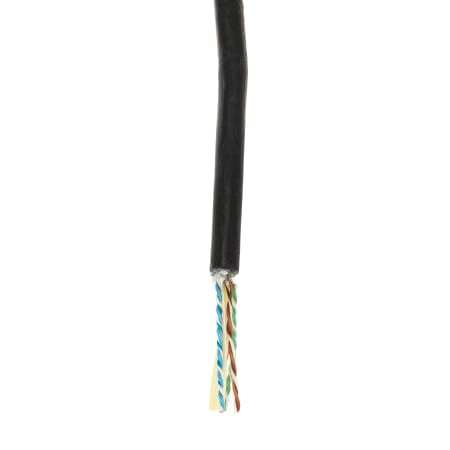

Seacoast USA's M24643/77-03UO (LSC6OSW4) is a watertight Category 6A cable with non-flexing service. M24643/77-03UO has four pairs of solid copper conductors, with two twisted insulated conductors forming each pair with a minimum diameter of 0.38 and a maximum diameter of 0.44 inches. LSC6OSW4 is Overall Shielded with Polyolefin insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +80°C. Four pair, solid copper conductor, 23 AWG nominal, polyolefin insulation. Two insulated conductors twisted to form pair, identification per ANSI/TIA-568-C.2. Four pairs cabled together. Watertight variant with filler material. An optional binder, 24 AWG drain wire, metallic foil/polyester tape shielded, with an overall tinned copper braided shield of 36 AWG or 34 AWG, optional overall binder tape, cross-linked polyolefin jacket, surface marking.
Requires Quote

Min Qty:1

  |

Qty Increment:1

Seacoast USA's M24643/77-03UO (LSC6OSW4) is a watertight Category 6A cable with non-flexing service. M24643/77-03UO has four pairs of solid copper conductors, with two twisted insulated conductors forming each pair with a minimum diameter of 0.38 and a maximum diameter of 0.44 inches. LSC6OSW4 is Overall Shielded with Polyolefin insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +80°C. Four pair, solid copper conductor, 23 AWG nominal, polyolefin insulation. Two insulated conductors twisted to form pair, identification per ANSI/TIA-568-C.2. Four pairs cabled together. Watertight variant with filler material. An optional binder, 24 AWG drain wire, metallic foil/polyester tape shielded, with an overall tinned copper braided shield of 36 AWG or 34 AWG, optional overall binder tape, cross-linked polyolefin jacket, surface marking.

Attributes

Environmental Properties
Temperature Rating (Range)-20°C to +80°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor Count8
Jacket MaterialCross-Linked Polyolefin
Jacket ColorBlack
Cable Diameter Max (in)0.44
Solid/StrandedSolid
Shielded/UnshieldedOverall Shielded
Shield TypeFoil & Tin-Coated Copper Braid
Cable Diameter Min (in)0.38
Electrical Properties
Insulation MaterialPolyolefin
