LS4OW150
Spec #:M24643/68-085UO
MFR #:M24643/68-085UO
GCG #:LS4OW150
Spec #:M24643/68-085UO
MFR #:M24643/68-085UO
GCG #:LS4OW150
Min Qty:1
|Qty Increment:1

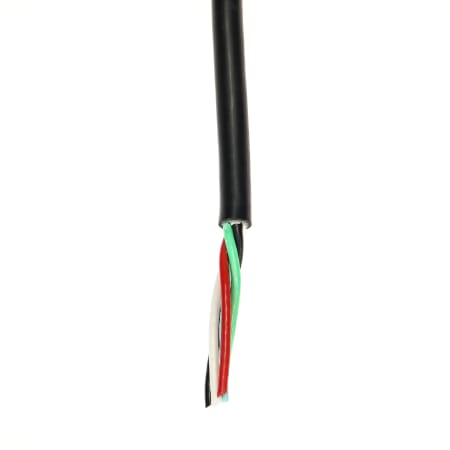

Seacoast USA's M24643/68-085UO (LS4OW150) is a 1000V watertight cable with non-flexing service. M24643/68-085UO has 4 000 AWG - Class D conductors with a minimum diameter of 1.6 and a maximum diameter of 1.725 inches. LS4OW150 is shielded overall with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Four conductor, watertight, stranded coated or uncoated copper conductor, thermoset insulation, extruded or taped, optional glass braid, optional covering. Four conductors cabled, aluminum foil Polyester tape, braided tin-coated copper shielded, water-blocking fillers. Standard Identification Code by Method 1, 3 or 5. Optional binder. Cross-linked Polyolefin jacket.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24643/68-085UO (LS4OW150) is a 1000V watertight cable with non-flexing service. M24643/68-085UO has 4 000 AWG - Class D conductors with a minimum diameter of 1.6 and a maximum diameter of 1.725 inches. LS4OW150 is shielded overall with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Four conductor, watertight, stranded coated or uncoated copper conductor, thermoset insulation, extruded or taped, optional glass braid, optional covering. Four conductors cabled, aluminum foil Polyester tape, braided tin-coated copper shielded, water-blocking fillers. Standard Identification Code by Method 1, 3 or 5. Optional binder. Cross-linked Polyolefin jacket.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor Count4
Jacket MaterialCross-Linked Polyolefin
Jacket Thickness0.06
Cable Diameter Max (in)1.725
Solid/StrandedStranded
Shielded/Unshieldedshielded overall
Shield TypeFoil & Tin-Coated Copper Braid
Cable Diameter Min (in)1.6
Electrical Properties
Insulation MaterialThermoset
Voltage Rating1000V
