LS2OW23
Spec #:M24643/66-05UO
MFR #:M24643/66-05UO
GCG #:LS2OW23
Spec #:M24643/66-05UO
MFR #:M24643/66-05UO
GCG #:LS2OW23
Min Qty:1
|Qty Increment:1

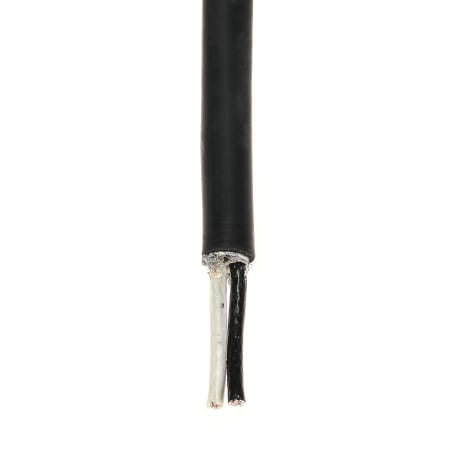

Seacoast USA's M24643/66-05UO (LS2OW23) is a 1000V watertight cable with non-flexing service. M24643/66-05UO has 2 7 AWG - Class B conductors with a minimum diameter of 0.743 and a maximum diameter of 0.797 inches. LS2OW23 is shielded overall with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Two conductor, watertight, stranded coated or uncoated copper conductor, thermoset insulation, extruded or taped, optional glass braid, optional covering. Two conductors cabled, aluminum foil Polyester tape, braided tin-coated copper shielded, water-blocking fillers. Standard Identification Code by Method 1, 3, or 5. Optional binder. Cross-linked Polyolefin jacket.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24643/66-05UO (LS2OW23) is a 1000V watertight cable with non-flexing service. M24643/66-05UO has 2 7 AWG - Class B conductors with a minimum diameter of 0.743 and a maximum diameter of 0.797 inches. LS2OW23 is shielded overall with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +105°C. Two conductor, watertight, stranded coated or uncoated copper conductor, thermoset insulation, extruded or taped, optional glass braid, optional covering. Two conductors cabled, aluminum foil Polyester tape, braided tin-coated copper shielded, water-blocking fillers. Standard Identification Code by Method 1, 3, or 5. Optional binder. Cross-linked Polyolefin jacket.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor Count2
Gauge Size7AWG
Jacket MaterialCross-Linked Polyolefin
Jacket Thickness0.05
Cable Diameter Max (in)0.797
Solid/StrandedStranded
Shielded/Unshieldedshielded overall
Shield TypeFoil & Tin-Coated Copper Braid
Cable Diameter Min (in)0.743
Electrical Properties
Insulation MaterialThermoset
Voltage Rating1000V
