EP100JFN

EP100JFN

MFR #:EP100JFN

GCG #:EP100JFN

MFR #:EP100JFN

GCG #:EP100JFN

Min Qty:1

  |

Qty Increment:1

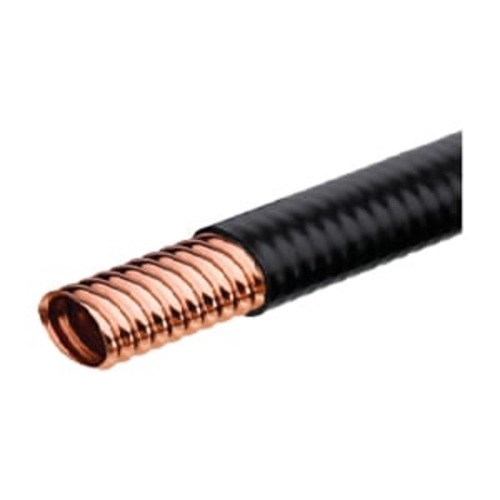

EP100JFN is a Seacoast Flexwell elliptical waveguide designed for microwave signal transport in systems operating within the listed frequency band of 8.5-10.0 GHz. It is selected when an elliptical waveguide form factor is specified for routing RF energy through fixed runs.

Construction details listed for EP100JFN include Black jacket, Polyethylene, Flame Retardant, dimensions over jacket: 1.3 x 0.9 (in), weight: 0.34 (lb/ft), 0.5 (kg/m). These attributes support installation planning where jacket material, fire performance, and physical envelope are critical.

Requires Quote

Min Qty:1

  |

Qty Increment:1

EP100JFN is a Seacoast Flexwell elliptical waveguide designed for microwave signal transport in systems operating within the listed frequency band of 8.5-10.0 GHz. It is selected when an elliptical waveguide form factor is specified for routing RF energy through fixed runs.

Construction details listed for EP100JFN include Black jacket, Polyethylene, Flame Retardant, dimensions over jacket: 1.3 x 0.9 (in), weight: 0.34 (lb/ft), 0.5 (kg/m). These attributes support installation planning where jacket material, fire performance, and physical envelope are critical.

Attributes

Supporting Information
Maximum Pull Length305 (ft), 100 (m)
Performance Details
Storage Temperature-70C to 85C(-94F to 185F)
Design & Construction
ColorBlack
Jacket MaterialPolyethylene
Electrical Properties
Input Frequency Range8.5-10.0
Physical Properties
Weight0.34 (lb/ft), 0.5 (kg/m)
