2XOW77
Spec #:M24640/17-06UO
MFR #:M24640/17-06UO
GCG #:2XOW77
Spec #:M24640/17-06UO
MFR #:M24640/17-06UO
GCG #:2XOW77
Min Qty:1
|Qty Increment:1

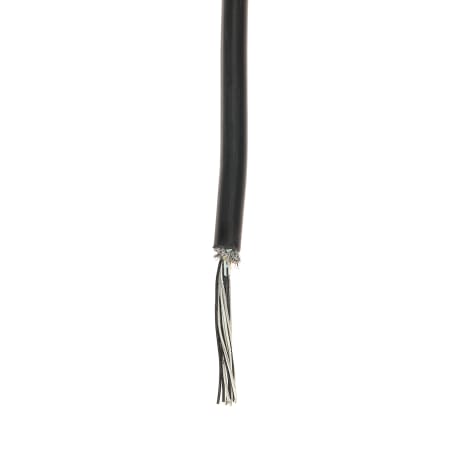

Seacoast USA's M24640/17-06UO (2XOW77) is a 600V light weight, watertight cable with non-flexing service. M24640/17-06UO has 154 26 AWG conductors with a minimum diameter of 0.84 and a maximum diameter of 0.906 inches. 2XOW77 has a bend radius of 11 inches, and is Overall Shielded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Multipair, 7 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated crosslinked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Two conductors twisted to form a pair. The required number of pairs cabled consecutively, optional binder tape, overall optimized tinned copper braid shielded, binder tape, cross-linked Polyolefin jacket, surface marking. Pair Identification Code by Method 6 or Telephone Identification Code by Method 3. For 2XOW-77 if Telephone Code, repeat color codes of pairs 1-11, in sequence,for pairs 67-77.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24640/17-06UO (2XOW77) is a 600V light weight, watertight cable with non-flexing service. M24640/17-06UO has 154 26 AWG conductors with a minimum diameter of 0.84 and a maximum diameter of 0.906 inches. 2XOW77 has a bend radius of 11 inches, and is Overall Shielded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Multipair, 7 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated crosslinked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Two conductors twisted to form a pair. The required number of pairs cabled consecutively, optional binder tape, overall optimized tinned copper braid shielded, binder tape, cross-linked Polyolefin jacket, surface marking. Pair Identification Code by Method 6 or Telephone Identification Code by Method 3. For 2XOW-77 if Telephone Code, repeat color codes of pairs 1-11, in sequence,for pairs 67-77.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialTin-Coated Copper
Conductor Count154
Jacket MaterialCross-Linked Polyvinylidene Flouride (PVDF)
Cable Diameter Max (in)0.906
Solid/StrandedStranded
Stranding7
Shielded/UnshieldedOverall Shielded
Shield TypeTin-Coated Copper Braid
Cable Diameter Min (in)0.84
Electrical Properties
Insulation MaterialCross-Linked Polyalkene
Voltage Rating600V
Physical Properties
Bend Radius (in)11
Weight per Foot0.615
