LSTTRS16
Spec #:M24643/13-07UN
MFR #:M24643/13-07UN
GCG #:LSTTRS16
Spec #:M24643/13-07UN
MFR #:M24643/13-07UN
GCG #:LSTTRS16
Min Qty:1
|Qty Increment:1

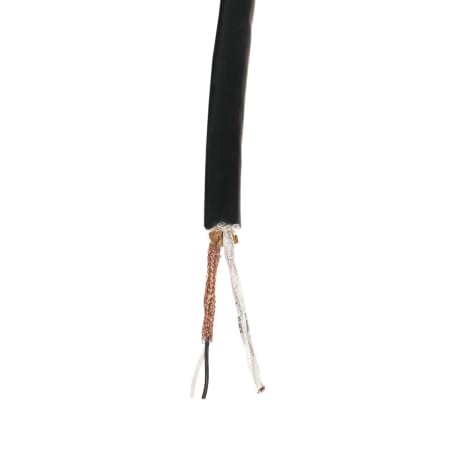

Seacoast USA's M24643/13-07UN (LSTTRS16) is a 300V non-watertight cable with non-flexing service. M24643/13-07UN has 32 20 AWG conductors with a minimum diameter of 1.1 and a maximum diameter of 1.19 inches. LSTTRS16 has a bend radius of 2.2 inches, and is Shielded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, thermoset insulation, one black and one white or natural conductor cabled to form pair, braided uncoated or tin-coated copper Shielded, Shielded insulation of two Polyester tapes or one tape and extruded jacket. Standard Identification Code by Method 2. The required number of Shielded pairs cabled consecutively, optional fillers and binder. Cross-linked Polyolefin jacket.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24643/13-07UN (LSTTRS16) is a 300V non-watertight cable with non-flexing service. M24643/13-07UN has 32 20 AWG conductors with a minimum diameter of 1.1 and a maximum diameter of 1.19 inches. LSTTRS16 has a bend radius of 2.2 inches, and is Shielded with Thermoset insulation material and a Cross-Linked Polyolefin external jacket, operating from -20°C to +90°C. Stranded coated or uncoated copper conductor, thermoset insulation, one black and one white or natural conductor cabled to form pair, braided uncoated or tin-coated copper Shielded, Shielded insulation of two Polyester tapes or one tape and extruded jacket. Standard Identification Code by Method 2. The required number of Shielded pairs cabled consecutively, optional fillers and binder. Cross-linked Polyolefin jacket.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +90°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialUncoated Copper
Conductor Count32
Jacket MaterialCross-Linked Polyolefin
Cable Diameter Max (in)1.19
Shielded/UnshieldedShielded
Cable Diameter Min (in)1.1
Electrical Properties
Insulation MaterialThermoset
Voltage Rating300V
Physical Properties
Bend Radius (in)2.2
Weight per Foot0.723
