MXO10
Spec #:M24640/8-01UO
MFR #:M24640/8-01UO
GCG #:MXO10
Spec #:M24640/8-01UO
MFR #:M24640/8-01UO
GCG #:MXO10
Min Qty:1
|Qty Increment:1

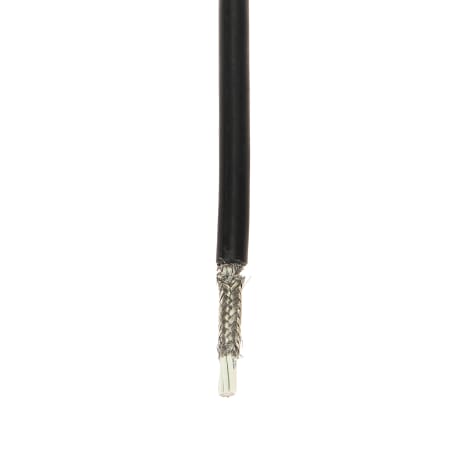

Seacoast USA's M24640/8-01UO (MXO10) is a 600V light weight, non-watertight cable with non-flexing service. M24640/8-01UO has 10 20 AWG conductors with a minimum diameter of 0.349 and a maximum diameter of 0.377 inches. MXO10 has a bend radius of 4.5 inches, and is Overall Shielded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Multiconductor, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated cross-linked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Individual conductors cabled consecutively, optional binder tape, overall optimized tinned copper braid shielded, optional binder tape, cross-linked Polyolefin jacket, surface marking. MXOW: Same construction except 7 strand, Watertight. Standard Identification Code by Method 1 or 3. If Method 1, then component wire shall be white.
Requires Quote
Min Qty:1
|Qty Increment:1
Seacoast USA's M24640/8-01UO (MXO10) is a 600V light weight, non-watertight cable with non-flexing service. M24640/8-01UO has 10 20 AWG conductors with a minimum diameter of 0.349 and a maximum diameter of 0.377 inches. MXO10 has a bend radius of 4.5 inches, and is Overall Shielded with Cross-Linked Polyalkene insulation material and a Cross-Linked Polyvinylidene Flouride (PVDF) external jacket, operating from -20°C to +105°C. Multiconductor, 19 strand tinned copper conductor, extruded irradiation cross-linked Polyalkene insulation with irradiated cross-linked Polyvinylidene Flouride (PVDF) insulation jacket (conductors per SAE-AS81044). Individual conductors cabled consecutively, optional binder tape, overall optimized tinned copper braid shielded, optional binder tape, cross-linked Polyolefin jacket, surface marking. MXOW: Same construction except 7 strand, Watertight. Standard Identification Code by Method 1 or 3. If Method 1, then component wire shall be white.
- Attributes
Attributes
Environmental Properties
Temperature Rating (Range)-20°C to +105°C
General Information
ManufacturerSeacoast
Design & Construction
Conductor MaterialTin-Coated Copper
Conductor Count10
Jacket MaterialCross-Linked Polyvinylidene Flouride (PVDF)
Cable Diameter Max (in)0.377
Solid/StrandedStranded
Stranding19
Shielded/UnshieldedOverall Shielded
Shield TypeTin-Coated Copper Braid
Cable Diameter Min (in)0.349
Electrical Properties
Insulation MaterialCross-Linked Polyalkene
Voltage Rating600V
Physical Properties
Bend Radius (in)4.5
Weight per Foot0.118
